Form Factor: 1U rack (two SD650 V2 nodes per tray)

Processor: 2x 3rd-gen Intel® Xeon® Processor Scalable family CPUs per node; 2x nodes per 1U tray

Memory: Up to 2TB using 16x 128GB 3200MHz TruDDR4 DIMMs per node

Drive Bays: Up to 2x 2.5" SATA SSDs (7mm height) or 1x 2.5" NVMe SSDs (15mm height) per node; up to 2x M.2 SATA SSDs for operating system boot functions

Expansion Slots: Up to 2x PCIe Gen4 x16 low-profile adapter slots (2x supported without internal storage) per node for HDR InfiniBand or Intel Omni Path; SharedIO supported

Form Factor: 6U rack with 6 trays

Processor: 2x 3rd-gen Intel® Xeon® Scalable processors per node

Memory: Up to 2.0TB using 16x 128GB 3200MHz TruDDR4 RDIMMs per tray

Drive Bays: 2x 2.5" slim SATA / NVMe U.2 SSD and 2x M.2 SATA SSD; SW RAID and Intel VROC for Intel drives only

Expansion Slots: 2x x16 PCIe Gen4 LP per tray

Form Factor: 1U rack

Processor: 2x 2nd-gen Intel® Xeon® Scalable Processor Scalable family CPUs per node; 2x nodes per 1U tray

Memory: Up to 1.5TB using 12x 2933MHz TruDDR4 DIMMs per node or up to 2TB (512GB x4) using Intel® Optane™ DC Persistent Memory

Drive Bays: Up to 2x 2.5” SATA SSDs (7mm height) or 1x 2.5” NVMe SSDs (15mm height) per node; up to 2x M.2 SATA SSDs

Expansion Slots: 1x 50mm width ML2 slot and 1x PCIe x16 slot for EDR InfiniBand or Intel Omni Path, per server node

Form Factor: 2U rack; 4x independent compute nodes

Processor: 2x 3rd-gen Intel® Xeon® Processor Scalable family CPUs, up to 250W

Memory: Up to 1TB using 16x 64GB 3200MHz TruDDR4 DIMMs per node

Drive Bays: 2x 7mm 2.5" or 1x 15mm 2.5" hot-swap drives, supporting SATA or NVMe SSDs; SW RAID; Intel VROC NVMe RAID-0 or RAID-1; 2x M.2 SATA SSDs for boot functions

Expansion Slots: 1x PCIe Gen 4 x16 low profile slot

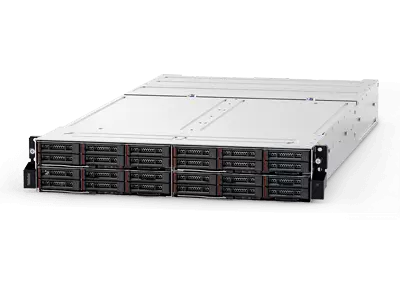

Form Factor: 2U rack; 4 independent compute nodes

Processor: Up to 2x 2nd-gen Intel® Xeon® Platinum processors, up to 205W

Memory: Up to 2TB in 16x slots, using 128GB 3DS RDIMMs; 2933MHz TruDDR4

Drive Bays: Up to 24x (6x per node) hot-swap 2.5" SAS/SATA HDDs/SSDs; up to 16x (4x per node) hot-swap 2.5" NVMe SSDs

Expansion Slots: 1x shuttle per D2 enclosure: either x8 PCIe Shuttle with 8x PCIe 3.0 x8 slots; or x16 PCIe Shuttle with 4x PCIe 3.0 x16 slots. Up to 2x external 1U trays
